8 “tft àpapọ iboju o ga 800*480 Industrial tft mita àpapọ
Ọja Ifihan
Gẹgẹbi ọkan ninu awọn iboju ifihan ti o wọpọ julọ ti a lo, iboju iboju 8 “ni lilo pupọ ni awọn ebute amusowo, Intanẹẹti ti awọn nkan, ile ọlọgbọn, ile-iṣẹ iṣakoso ile-iṣẹ ati ohun elo itanna miiran.
Ohun akọkọ ti a nilo lati dojukọ ni awọn ọja didara. Botilẹjẹpe ọpọlọpọ awọn ami iyasọtọ ati awọn awoṣe wa lori ọja, ọna kan ṣoṣo lati gba idaniloju didara to dara julọ ni lati ra lati ọdọ olupese orisun. Nitoripe olupese orisun nikan ni imọ-ẹrọ ọjọgbọn ati ẹrọ ti iṣelọpọ ati iṣelọpọ, lati rii daju didara ati igbẹkẹle ọja le ṣee lo fun igba pipẹ ati kii yoo han gbogbo iru awọn ikuna.
Isejade iwọn ti Ruixiang le dara julọ mọ iwọntunwọnsi ati ṣiṣe iṣelọpọ, ki idiyele iṣelọpọ le ni iṣakoso dara julọ. Ni akoko kanna, Ruixiang tun ni anfani nla ni iwadii imọ-ẹrọ ati idagbasoke ati ohun elo iṣelọpọ, eyiti o le ṣe ifowosowopo dara julọ pẹlu awọn ọna asopọ iṣelọpọ ti o wa ni ọpọlọpọ awọn ọna asopọ apẹrẹ, mu ilọsiwaju iṣelọpọ ṣiṣẹ, ati dinku idiyele awọn ọja ati ọmọ iṣelọpọ.
Awọn iṣẹ wa
Ruixiang le pese ijumọsọrọ iṣaaju-tita-ọkan-ọkan ati iṣẹ-tita lẹhin-tita, ati ṣe akanṣe awọn solusan oriṣiriṣi gẹgẹ bi awọn iwulo oriṣiriṣi ti awọn olumulo, ati ṣatunṣe nigbagbogbo ninu ilana ti ipinnu. Ni akoko kanna, awọn olupilẹṣẹ orisun Ruixiang le san ifojusi si awọn iṣoro olumulo, ṣe ipilẹṣẹ lati dahun awọn ibeere, awọn aṣiṣe atunṣe akoko ati awọn abawọn, ki awọn olumulo lero iṣẹ ti o dara julọ ati iriri olumulo ni ilana lilo.

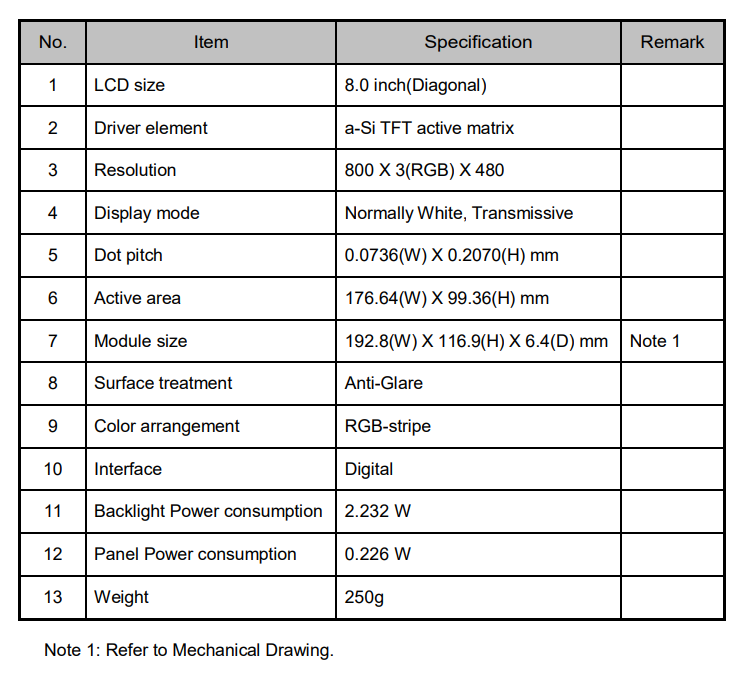

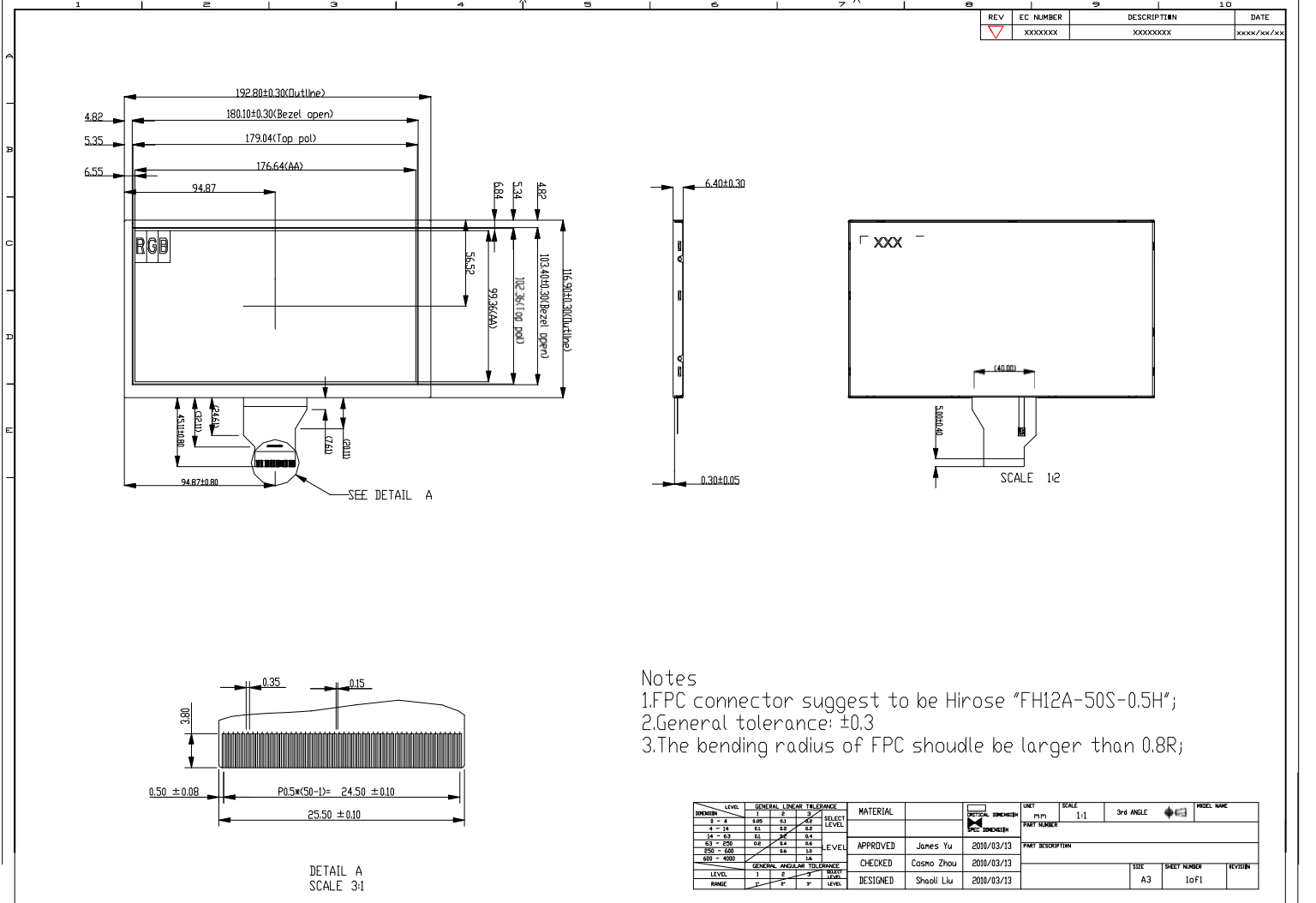

Ọja Specification
Ruixiang ifọwọkan àpapọ ọna ẹrọ Co., Ltd.
LCD Ifihan Module
OEM/ODM isọdi ni atilẹyin.
Awọn atẹle kii ṣe gbogbo titobi. Ti iwọn ti o nilo ko ba si ninu atokọ, jọwọ sọ fun wa iwọn ti o nilo.
| Iwọn (inch) | Apakan No. | Ipinnu | LCD OD | Wo Agbegbe (mm) | Ni wiwo | IC | FPC | Akiyesi | |
| 2.4 | RXL024074-A | 240*320 | 42.72*58.9*2.2 | 36,72 * 48,96 | MCU(P) | ILI9341V | 40PIN | RTP/CTP | Olubasọrọ US |
| RXL024091-A | 240*320 | 42.72*60.26*2.6 | 36,72 * 48,96 | MCU/SPI/RGB | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.72*60.26*3.6 | 36,72 * 48,96 | MCU | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.92 * 60.26 * 3.78 | 36,72 * 48,96 | MCU/SPI/RGB | ST7789V | 45PIN | IPS | ||
| 2.8 | RXL028052-A | 240*320 | 50.2 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | |
| RXL028075-A | 240*320 | 50.5 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | ST7789V | 50PIN | IPS | ||
| RXL028092-A | 240*320 | 50 * 69.2 * 2.45 | 43.2 * 57.6 | MCU(P) | ILI9341V | 37PIN | RTP/CTP | ||
| 3 | RXL030053-A | 240*400 | 45.4*77*2.6 | 39.24*65.4 | MCU/SPI/RGB | ILI9327 | 45PIN | IPS | Olubasọrọ US |
| RXL030076-A | 240*400 | 45.4*77*2.6 | 38.88*64.8 | MCU/SPI/RGB | ILI9327 | 45PIN | RTP/CTP | ||
| 3.2 | RXL032054-A | 240*320 | 55.04 * 77.2 * 2.5 | 48.6*64.8 | MCU(P)/RGB | ILI9341 | 40PIN | RTP/CTP | |
| RXL032077-A | 240*320 | 55*77.2*2.6 | 48.6*64.8 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | ||
| 3.5 | RXL035055-A | 320*240 | 76.9*63.9*3.25 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | RTP/CTP | |
| RXL035093-A | 320*480 | 54.66*82.94*2.3 | 48.96*73.44 | MCU(P)/RGB | ILI9488 | 40PIN | RTP/CTP | ||
| RXL035103-A | 320*240 | 76.9*63.9*4.5 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | RTP/CTP | ||
| RXL035109-A | 320*240 | 76.9 * 63.9 * 4.55 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | IPS | ||
| RXL035113-A | 320*480 | 54.58 * 83.57 * 2.1 | 48.96*73.44 | MCU/SPI/RGB | ILI9488 | 50PIN | IPS | ||
| RXL035036-A | 320*480 | 55.5 * 84.9 * 2.5 | 48.96*73.44 | MIPI | ILI9488 | 20 PIN | IPS | ||
| 4 | RXL040056-A | 480*800 | 79.38*76.43*2.8 | 70.176 * 71.856 | SPI/RGB | ST7701S | 50PIN | IPS | Olubasọrọ US |
| RXL040078-A | 480*800 | 57.14*96.85*2 | 51.84 * 86.4 | MIPI | OTM8019A | 20 PIN | IPS | ||
| RXL040094-A | 480*800 | 58.26 * 98.1 * 2.55 | 51.84 * 86.4 | SPI+RGB | ILI9806E | 50PIN | IPS | ||
| RXL040026-A | 480*800 | 57.15 * 96.85 * 2.3 | 51.84 * 86.4 | RGB | ILI9806 | 30 PIN | IPS | ||
| RXL040104-A | 480*800 | 57.14*96.85*2 | 51.84 * 86.4 | MCU(P)/RGB | ILI9806G | 50PIN | RTP/CTP | ||
| 4.3 | RXL043057-A | 480*272 | 105.4 * 67.15 * 2.86 | 95.04 * 53.86 | 16/18/24RGB | ST7282 | 40PIN | RTP/CTP | |
| RXL043079-A | 480*800 | 62.5 * 105.55 * 2.5 | 56.16*93.6 | 16/18/24RGB | ILI9806E | 45PIN | IPS | ||
| RXL043095-A | 480*272 | 105.4 * 67.15 * 2.85 | 95.04 * 53.86 | 8/24RGB | SC7283 | 40PIN | Iwọn otutu / IPS | ||
| RXL043105-A | 480*800 | 62.5 * 105.55 * 2.5 | 56.16*93.6 | MIPI | ILI9806E | 20 PIN | IPS | ||
| RXL043119-A | 480*272 | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| RXL043002-A | 480*272 | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| 4.5 | RXL045058-A | 480*854 | 61.54 * 110.1 * 2.55 | 55.44*98.64 | SPI+RGB | ILI9806E | 45PIN | RTP/CTP | Olubasọrọ US |
| RXL045080-A | 480*854 | 61.54 * 110.1 * 2.55 | 55.44*98.64 | MIPI | ILI9806E | 20 PIN | IPS | ||
| 5 | RXL050059-A | 480*272 | 120.8 * 75.9 * 4.2 | 110.88*62.83 | RGB | HX8257-A00 | 40PIN | RTP/CTP | |
| RXL050081-A | 800*480 | 120.7 * 75.8 * 4.5 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050063-A | 800*480 | 120.7 * 75.8 * 4.3 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050020-A | 800*480 | 120.7 * 75.8 * 4.3.1 | 108*64.8 | RGB | ILI6122 | 40PIN | RTP/CTP | ||
| RXL050096-A | 800*480 | 120.9 * 78.1 * 2.95 | 108*64.8 | 16/18/24RGB | ST7262 | 40PIN | Iwọn otutu / IPS | ||
| RXL050106-A | 720*1280 | 67.56*122.35*2.6 | 62.1 * 110.4 | MIPI | ILI9881C | 30 PIN | IPS HD | ||
| RXL050025-A | 720*1280 | 65.4 * 119.3 * 1.64 | 62.1 * 110.4 | MIPI | / | 25 PIN | |||
| RXL050110-A | 1080*1920 | 64.3 * 118.3 * 1.49 | 61.88*110.2 | MIPI | NT35596 | 39PIN | IPS HD | ||
| 5.5 | RXL055060-A | 720*1280 | 71.66*129.99*1.61 | 68.04 * 120.96 | MIPI | OTM1283A | 25 PIN | IPS 1080P | |
| RXL055082-A | 720*1280 | 74.28*133.21*2.6 | 68.04 * 120.96 | 4 Lane MIPI | ILI9881C | 30 PIN | RTP/CTP | Olubasọrọ US | |
| RXL055097-A | 1080*1920 | 74.28*133.21*2.6 | 68.04 * 120.96 | 4 Lane MIPI | NT35532 | 25 PIN | IPS 1080P | ||
| 5.6 | RXL056061-A | 640*480 | 126.5 * 100 * 4.5 | 112.9 * 84.67 | 16/18RGB | / | 40PIN | RTP/CTP | |
| 7 | RXL070018-A | 800*480 | 165*100*3.5 | 154.08 * 85.92 | RGB | ILI6122+ILI5960 | 50PIN | RTP/CTP | |
| RXL070083-A | 800*480 | 165*100*5.7 | 154.08 * 85.92 | MIPI | ILI6122+ILI5960 | 50PIN | RTP/CTP | ||
| RXL070098-A | 800*480 | 165.4 * 104.59 * 5.8 | 152.4 * 91.44 | 16/18/24RGB | / | 40PIN | Iwọn otutu / IPS | ||
| RXL070107-A | 1024*600 | 165*100*6 | 154.21 * 85.92 | RGB | NT52003 + NT51008 | 50PIN | RTP/CTP | ||
| RXL070111-A | 1024*600 | 165*100*3.5 | 154.21 * 85.92 | MIPI | EK79007AD+ EK73215BCGA | 50PIN | RTP/CTP | ||
| RXL070114-A | 1024*600 | 164.9 * 100 * 3.5 | 154.21 * 85.92 | LVDS | 79001/EK73215BC | 30 PIN | MVA | ||
| RXL070116-A | 1024*600 | 165*100*5.8 | 154.21 * 85.92 | 4 Lane MIPI | / | 30 PIN | IPS | ||
| RXL070117-A | 800*1280 | 103.46 * 160.78 * 2.17 | 94.2 * 150.72 | MIPI | NT35521 | 40PIN | IPS | ||
| RXL070084-A | 800*1280 | 97.35 * 162.03 * 2.3 | 94.2 * 150.7 | MIPI | / | 40PIN | IPS | Olubasọrọ US | |
| RXL070029-A | 1200*1920 | 98,75 * 160,85 | 94.5 * 151.2 | MIPI | / | 40PIN | IPS | ||
| 8 | RXL080064-A | 800*600 | 183*141*5.6 | 162*121.5 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL080050-A | 800*1280 | 114.6 * 184.1 * 2.5 | 107.64 * 172.22 | MIPI | / | 31 PIN | IPS | ||
| RXL080120-A | 1024*768 | 136*174*2.5 | 162*121.5 | MIPI | 50PIN | RTP/CTP | |||
| RXL080049-A | 1024*768 | 183*141*6.3 | 162*121.54 | LVDS | 50PIN | RTP/CTP | |||
| 9 | RXL090065-A | 800*480 | 211.1 * 126.5 * 3.5 | 198*111.7 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL090085-A | 1024*600 | 210.7 * 126.5 * 5 | 196.61 * 114.15 | RGB | / | 50PIN | RTP/CTP | ||
| 10.1 | RXL101086-A | 800*1280 | 143*228.6*2.8 | 135.36 * 216.57 | MIPI | / | 40PIN | IPS | |
| RXL101100-A | 1200*1920 | 143*228.7*2.2 | 135.36 * 216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101073-A | 1080*1920 | 142.8 * 228.2 | 135.36 * 216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101108-A | 1024*600 | 235*143*5.2 | 222.72 * 125.28 | LVDS | / | 40PIN | RTP/CTP | Olubasọrọ US | |
| RXL101112-A | 1024*600 | 235*143*5 | 222.72 * 125.28 | RGB | / | 30 PIN | IPS | ||
| RXL101066-A | 1280*800 | 229.46 * 149.1 * 2.5 | 216.96*135.6 | LVDS | / | 40PIN | IPS | ||
| RXL101121-A | 1280*800 | 229.46 * 150.2 * 4.5 | 216.96*135.6 | LVDS | 40PIN | RTP/CTP | |||
| 10.4 | RXL104067-A | 800*600 | 228.4 * 175.4 * 5.9 | 211.2 * 158.4 | 24RGB | / | 60 PIN | RTP/CTP | |
| 12.1 | RXL121068-A | 1024*768 | 279*209*9 | 245.76 * 184.32 | LVDS | / | 20 PIN | RTP/CTP | |
| RXL121122-A | 1024*768 | 260.5 * 203.5 * 10 | 248*187 | LVDS | / | 20 PIN | RTP/CTP | ||
| RXL121087-A | 1024*768 | 260.5 * 204 * 8.4 | 245.76*184.3 | LVDS | / | 30 PIN | IPS | ||
| 13.3 | RXL133069-A | Ọdun 1920*1080 | 306.3 * 177.7 * 5.4 | 293.47 * 165.07 | EDP | / | 30 PIN | IPS | |
| RXL133088-A | Ọdun 1920*1080 | 305.35 * 187.82 * 2.7 | 293.76*165.24 | EDP | / | 30 PIN | IPS | ||
| RXL133101-A | Ọdun 1920*1080 | 305.2 * 178.1 * 2.6 | 293.76*165.24 | EDP | / | 30 PIN | IPS | ||
| 15.6 | RXL156070-A | Ọdun 1920*1080 | 363.8*215.9*8.8 | 344.16 * 193.59 | EDP | / | 30 PIN | 1000 NITS | Olubasọrọ US |
| RXL156089-A | Ọdun 1920*1080 | 359.5 * 223.8 * 3.2 | 344.16 * 193.59 | EDP | / | 30 PIN | 220nits IPS | ||
| 19 | RXL190071-A | 1280*1024 | 396*324*11.2 | 376.32 * 301.06 | LVDS | / | 30 PIN | CTP | |
| 21.5 | RXL215072-A | Ọdun 1920*1080 | 495.6 * 292.2 * 10.6 | 476.64 * 268.11 | LVDS | / | 30 PIN | CTP | |
| RXL215090-A | Ọdun 1920*1080 | 489.3 * 287 * 12.8 | 476.06 * 267.8 | LVDS | / | 30 PIN | IPS |
