Aṣa àpapọ 3,5 inch Wide otutu Tft Ifihan
Ọja Ifihan
Eyi jẹ ifihan aṣa 3.5-inch ti a ṣe apẹrẹ ati ti iṣelọpọ nipasẹ Ruixiang. Ifihan naa ni ipinnu ti 320x240 ati imọlẹ ti awọn nits 450, n pese alaye ti o ga julọ ati hihan ni ọpọlọpọ awọn ohun elo ile-iṣẹ. Awọn oniwe-SPI ni wiwo ati SSD2119 iwakọ IC ṣe idaniloju isọpọ ailopin ati iṣẹ ti o gbẹkẹle.
Ruixiang fojusi lori ipese awọn solusan ifihan adani lati pade awọn ibeere alailẹgbẹ ti awọn ohun elo ile-iṣẹ. Ẹgbẹ ti o ni iriri ti awọn onimọ-ẹrọ ti ṣe apẹrẹ ni ifijišẹ ati jiṣẹ awọn solusan ifihan ti o pade ọpọlọpọ awọn iwulo ile-iṣẹ. Ifihan kọọkan jẹ aṣa ti a ṣe lati fi iṣẹ ṣiṣe to dayato si, iduroṣinṣin pẹpẹ ati wiwa igba pipẹ, ti o jẹ ki o jẹ apẹrẹ fun wiwa awọn agbegbe ile-iṣẹ.
RXCX-035SN21-TD jẹ apẹrẹ lati koju awọn ipo iṣẹ lile, pẹlu iwọn otutu ti nṣiṣẹ ti -20 si 70 iwọn Celsius. Ifihan iwọn otutu jakejado yii jẹ apẹrẹ fun lilo ni awọn agbegbe ile-iṣẹ nibiti awọn iwọn otutu ti o pọ julọ wọpọ, ni idaniloju iṣẹ ṣiṣe igbẹkẹle ni awọn ipo nija.
Ni Ruixiang, a loye pataki ti ibamu ati igbẹkẹle ninu awọn eto ifihan ile-iṣẹ. Awọn onimọ-ẹrọ wa ṣe idanwo ifọwọkan lile, ifihan ati awọn awakọ agbeegbe lati rii daju ibaramu ailopin pẹlu awọn eto OEM. Ilana idanwo kikun yii ṣe iranlọwọ yago fun awọn ija pẹlu awọn paati eto, fifun awọn alabara wa ni ifọkanbalẹ ti ọkan ati aridaju iṣẹ ṣiṣe ti ohun elo ile-iṣẹ wọn.

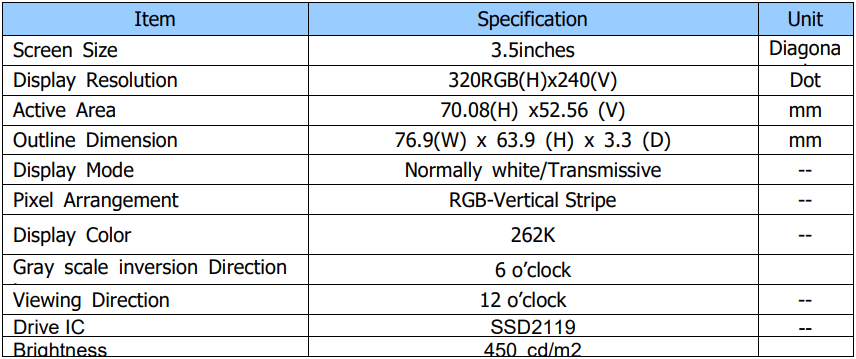

Sipesifikesonu gbogbogbo:
RXCX-035SN21-TD jẹ ojutu ifihan ti o wapọ ti o le ṣe adani lati pade awọn ibeere ile-iṣẹ kan pato. Boya fun iṣakoso ilana, adaṣe tabi awọn ohun elo ibojuwo, ifihan yii n pese irọrun ati iṣẹ ṣiṣe ti o nilo lati pade awọn ibeere ti awọn agbegbe ile-iṣẹ. Iwọn 3.5-inch iwapọ rẹ jẹ ki o dara fun awọn fifi sori aaye ti o ni ihamọ laisi ibajẹ didara ifihan.
Ni afikun si awọn alaye imọ-ẹrọ iwunilori rẹ, RXCX-035SN21-TD ṣe atilẹyin nipasẹ ifaramo Ruixiang si didara ati igbẹkẹle. Awọn solusan ifihan aṣa wa ti ṣe apẹrẹ lati pade iṣẹ ṣiṣe ti o ga julọ ati awọn iṣedede agbara, ni idaniloju itẹlọrun alabara igba pipẹ.
Ruixiang's RXCX-035SN21-TD jẹ ifihan 3.5-inch ti a ṣe adani ti o pese iṣẹ ṣiṣe ti o dara julọ, igbẹkẹle ati irọrun fun awọn ohun elo ile-iṣẹ. Pẹlu iwọn otutu jakejado rẹ, isọpọ ailopin ati awọn ẹya apẹrẹ aṣa, o jẹ apẹrẹ fun awọn agbegbe ile-iṣẹ nibiti igbẹkẹle ati iṣẹ ṣiṣe ṣe pataki. Ni iriri iyatọ ti ojutu ifihan aṣa ti a ṣe apẹrẹ lati pade awọn iwulo ile-iṣẹ kan pato pẹlu Ifihan LCD Ruixiang.
Awọn iṣẹ wa
Ruixiang pese awọn onibara pẹlu awọn iṣẹ isọdi ti o rọ: FPC iboju ti a ṣe adani, iboju IC, iboju ẹhin iboju, iboju ideri iboju ifọwọkan, sensọ, FPC iboju ifọwọkan. Fun awọn alaye diẹ sii, jọwọ kan si wa, a yoo fun ọ ni igbelewọn iṣẹ akanṣe ọfẹ ati ifọwọsi iṣẹ akanṣe, ati pe o ni oṣiṣẹ R & D ọjọgbọn iṣẹ akanṣe ọkan-si-ọkan, ṣe itẹwọgba ibeere ti awọn alabara lati wa wa!
Ọja Specification
Ruixiang ifọwọkan àpapọ ọna ẹrọ Co., Ltd.
LCD Ifihan Module
OEM/ODM isọdi ni atilẹyin.
Awọn atẹle kii ṣe gbogbo titobi. Ti iwọn ti o nilo ko ba si ninu atokọ, jọwọ sọ fun wa iwọn ti o nilo.
| Iwọn (inch) | Apakan No. | Ipinnu | LCD OD | Wo Agbegbe (mm) | Ni wiwo | IC | FPC | Akiyesi | |
| 2.4 | RXL024074-A | 240*320 | 42.72*58.9*2.2 | 36,72 * 48,96 | MCU(P) | ILI9341V | 40PIN | RTP/CTP | Olubasọrọ US |
| RXL024091-A | 240*320 | 42.72*60.26*2.6 | 36,72 * 48,96 | MCU/SPI/RGB | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.72*60.26*3.6 | 36,72 * 48,96 | MCU | ST7789V | 45PIN | RTP/CTP | ||
| RXL024102-A | 240*320 | 42.92 * 60.26 * 3.78 | 36,72 * 48,96 | MCU/SPI/RGB | ST7789V | 45PIN | IPS | ||
| 2.8 | RXL028052-A | 240*320 | 50.2 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | |
| RXL028075-A | 240*320 | 50.5 * 69.7 * 2.6 | 43.2 * 57.6 | MCU/SPI/RGB | ST7789V | 50PIN | IPS | ||
| RXL028092-A | 240*320 | 50 * 69.2 * 2.45 | 43.2 * 57.6 | MCU(P) | ILI9341V | 37PIN | RTP/CTP | ||
| 3 | RXL030053-A | 240*400 | 45.4*77*2.6 | 39.24*65.4 | MCU/SPI/RGB | ILI9327 | 45PIN | IPS | Olubasọrọ US |
| RXL030076-A | 240*400 | 45.4*77*2.6 | 38.88*64.8 | MCU/SPI/RGB | ILI9327 | 45PIN | RTP/CTP | ||
| 3.2 | RXL032054-A | 240*320 | 55.04 * 77.2 * 2.5 | 48.6*64.8 | MCU(P)/RGB | ILI9341 | 40PIN | RTP/CTP | |
| RXL032077-A | 240*320 | 55*77.2*2.6 | 48.6*64.8 | MCU/SPI/RGB | ST7789V | 50PIN | RTP/CTP | ||
| 3.5 | RXL035055-A | 320*240 | 76.9*63.9*3.25 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | RTP/CTP | |
| RXL035093-A | 320*480 | 54.66*82.94*2.3 | 48.96*73.44 | MCU(P)/RGB | ILI9488 | 40PIN | RTP/CTP | ||
| RXL035103-A | 320*240 | 76.9*63.9*4.5 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | RTP/CTP | ||
| RXL035109-A | 320*240 | 76.9 * 63.9 * 4.55 | 70.08 * 52.56 | RGB | HX8238A | 54PIN | IPS | ||
| RXL035113-A | 320*480 | 54.58 * 83.57 * 2.1 | 48.96*73.44 | MCU/SPI/RGB | ILI9488 | 50PIN | IPS | ||
| RXL035036-A | 320*480 | 55.5 * 84.9 * 2.5 | 48.96*73.44 | MIPI | ILI9488 | 20 PIN | IPS | ||
| 4 | RXL040056-A | 480*800 | 79.38*76.43*2.8 | 70.176 * 71.856 | SPI/RGB | ST7701S | 50PIN | IPS | Olubasọrọ US |
| RXL040078-A | 480*800 | 57.14*96.85*2 | 51.84 * 86.4 | MIPI | OTM8019A | 20 PIN | IPS | ||
| RXL040094-A | 480*800 | 58.26 * 98.1 * 2.55 | 51.84 * 86.4 | SPI+RGB | ILI9806E | 50PIN | IPS | ||
| RXL040026-A | 480*800 | 57.15 * 96.85 * 2.3 | 51.84 * 86.4 | RGB | ILI9806 | 30 PIN | IPS | ||
| RXL040104-A | 480*800 | 57.14*96.85*2 | 51.84 * 86.4 | MCU(P)/RGB | ILI9806G | 50PIN | RTP/CTP | ||
| 4.3 | RXL043057-A | 480*272 | 105.4 * 67.15 * 2.86 | 95.04 * 53.86 | 16/18/24RGB | ST7282 | 40PIN | RTP/CTP | |
| RXL043079-A | 480*800 | 62.5 * 105.55 * 2.5 | 56.16*93.6 | 16/18/24RGB | ILI9806E | 45PIN | IPS | ||
| RXL043095-A | 480*272 | 105.4 * 67.15 * 2.85 | 95.04 * 53.86 | 8/24RGB | SC7283 | 40PIN | Iwọn otutu / IPS | ||
| RXL043105-A | 480*800 | 62.5 * 105.55 * 2.5 | 56.16*93.6 | MIPI | ILI9806E | 20 PIN | IPS | ||
| RXL043119-A | 480*272 | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| RXL043002-A | 480*272 | 53.856 * 95.04 | 53.856 * 95.04 | RGB | HX8257-A00 | 40PIN | RTP/CTP | ||
| 4.5 | RXL045058-A | 480*854 | 61.54 * 110.1 * 2.55 | 55.44*98.64 | SPI+RGB | ILI9806E | 45PIN | RTP/CTP | Olubasọrọ US |
| RXL045080-A | 480*854 | 61.54 * 110.1 * 2.55 | 55.44*98.64 | MIPI | ILI9806E | 20 PIN | IPS | ||
| 5 | RXL050059-A | 480*272 | 120.8 * 75.9 * 4.2 | 110.88*62.83 | RGB | HX8257-A00 | 40PIN | RTP/CTP | |
| RXL050081-A | 800*480 | 120.7 * 75.8 * 4.5 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050063-A | 800*480 | 120.7 * 75.8 * 4.3 | 108*64.8 | RGB | ILI6122+ILI5960 | 40PIN | RTP/CTP | ||
| RXL050020-A | 800*480 | 120.7 * 75.8 * 4.3.1 | 108*64.8 | RGB | ILI6122 | 40PIN | RTP/CTP | ||
| RXL050096-A | 800*480 | 120.9 * 78.1 * 2.95 | 108*64.8 | 16/18/24RGB | ST7262 | 40PIN | Iwọn otutu / IPS | ||
| RXL050106-A | 720*1280 | 67.56*122.35*2.6 | 62.1 * 110.4 | MIPI | ILI9881C | 30 PIN | IPS HD | ||
| RXL050025-A | 720*1280 | 65.4 * 119.3 * 1.64 | 62.1 * 110.4 | MIPI | / | 25 PIN | |||
| RXL050110-A | 1080*1920 | 64.3 * 118.3 * 1.49 | 61.88*110.2 | MIPI | NT35596 | 39PIN | IPS HD | ||
| 5.5 | RXL055060-A | 720*1280 | 71.66*129.99*1.61 | 68.04 * 120.96 | MIPI | OTM1283A | 25 PIN | IPS 1080P | |
| RXL055082-A | 720*1280 | 74.28*133.21*2.6 | 68.04 * 120.96 | 4 Lane MIPI | ILI9881C | 30 PIN | RTP/CTP | Olubasọrọ US | |
| RXL055097-A | 1080*1920 | 74.28*133.21*2.6 | 68.04 * 120.96 | 4 Lane MIPI | NT35532 | 25 PIN | IPS 1080P | ||
| 5.6 | RXL056061-A | 640*480 | 126.5 * 100 * 4.5 | 112.9 * 84.67 | 16/18RGB | / | 40PIN | RTP/CTP | |
| 7 | RXL070018-A | 800*480 | 165*100*3.5 | 154.08 * 85.92 | RGB | ILI6122+ILI5960 | 50PIN | RTP/CTP | |
| RXL070083-A | 800*480 | 165*100*5.7 | 154.08 * 85.92 | MIPI | ILI6122+ILI5960 | 50PIN | RTP/CTP | ||
| RXL070098-A | 800*480 | 165.4 * 104.59 * 5.8 | 152.4 * 91.44 | 16/18/24RGB | / | 40PIN | Iwọn otutu / IPS | ||
| RXL070107-A | 1024*600 | 165*100*6 | 154.21 * 85.92 | RGB | NT52003 + NT51008 | 50PIN | RTP/CTP | ||
| RXL070111-A | 1024*600 | 165*100*3.5 | 154.21 * 85.92 | MIPI | EK79007AD+ EK73215BCGA | 50PIN | RTP/CTP | ||
| RXL070114-A | 1024*600 | 164.9 * 100 * 3.5 | 154.21 * 85.92 | LVDS | 79001/EK73215BC | 30 PIN | MVA | ||
| RXL070116-A | 1024*600 | 165*100*5.8 | 154.21 * 85.92 | 4 Lane MIPI | / | 30 PIN | IPS | ||
| RXL070117-A | 800*1280 | 103.46 * 160.78 * 2.17 | 94.2 * 150.72 | MIPI | NT35521 | 40PIN | IPS | ||
| RXL070084-A | 800*1280 | 97.35 * 162.03 * 2.3 | 94.2 * 150.7 | MIPI | / | 40PIN | IPS | Olubasọrọ US | |
| RXL070029-A | 1200*1920 | 98,75 * 160,85 | 94.5 * 151.2 | MIPI | / | 40PIN | IPS | ||
| 8 | RXL080064-A | 800*600 | 183*141*5.6 | 162*121.5 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL080050-A | 800*1280 | 114.6 * 184.1 * 2.5 | 107.64 * 172.22 | MIPI | / | 31 PIN | IPS | ||
| RXL080120-A | 1024*768 | 136*174*2.5 | 162*121.5 | MIPI | 50PIN | RTP/CTP | |||
| RXL080049-A | 1024*768 | 183*141*6.3 | 162*121.54 | LVDS | 50PIN | RTP/CTP | |||
| 9 | RXL090065-A | 800*480 | 211.1 * 126.5 * 3.5 | 198*111.7 | 24RGB | / | 50PIN | RTP/CTP | |
| RXL090085-A | 1024*600 | 210.7 * 126.5 * 5 | 196.61 * 114.15 | RGB | / | 50PIN | RTP/CTP | ||
| 10.1 | RXL101086-A | 800*1280 | 143*228.6*2.8 | 135.36 * 216.57 | MIPI | / | 40PIN | IPS | |
| RXL101100-A | 1200*1920 | 143*228.7*2.2 | 135.36 * 216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101073-A | 1080*1920 | 142.8 * 228.2 | 135.36 * 216.58 | MIPI | / | 40PIN | IPS | ||
| RXL101108-A | 1024*600 | 235*143*5.2 | 222.72 * 125.28 | LVDS | / | 40PIN | RTP/CTP | Olubasọrọ US | |
| RXL101112-A | 1024*600 | 235*143*5 | 222.72 * 125.28 | RGB | / | 30 PIN | IPS | ||
| RXL101066-A | 1280*800 | 229.46 * 149.1 * 2.5 | 216.96*135.6 | LVDS | / | 40PIN | IPS | ||
| RXL101121-A | 1280*800 | 229.46 * 150.2 * 4.5 | 216.96*135.6 | LVDS | 40PIN | RTP/CTP | |||
| 10.4 | RXL104067-A | 800*600 | 228.4 * 175.4 * 5.9 | 211.2 * 158.4 | 24RGB | / | 60 PIN | RTP/CTP | |
| 12.1 | RXL121068-A | 1024*768 | 279*209*9 | 245.76 * 184.32 | LVDS | / | 20 PIN | RTP/CTP | |
| RXL121122-A | 1024*768 | 260.5 * 203.5 * 10 | 248*187 | LVDS | / | 20 PIN | RTP/CTP | ||
| RXL121087-A | 1024*768 | 260.5 * 204 * 8.4 | 245.76*184.3 | LVDS | / | 30 PIN | IPS | ||
| 13.3 | RXL133069-A | Ọdun 1920*1080 | 306.3 * 177.7 * 5.4 | 293.47 * 165.07 | EDP | / | 30 PIN | IPS | |
| RXL133088-A | Ọdun 1920*1080 | 305.35 * 187.82 * 2.7 | 293.76*165.24 | EDP | / | 30 PIN | IPS | ||
| RXL133101-A | Ọdun 1920*1080 | 305.2 * 178.1 * 2.6 | 293.76*165.24 | EDP | / | 30 PIN | IPS | ||
| 15.6 | RXL156070-A | Ọdun 1920*1080 | 363.8*215.9*8.8 | 344.16 * 193.59 | EDP | / | 30 PIN | 1000 NITS | Olubasọrọ US |
| RXL156089-A | Ọdun 1920*1080 | 359.5 * 223.8 * 3.2 | 344.16 * 193.59 | EDP | / | 30 PIN | 220nits IPS | ||
| 19 | RXL190071-A | 1280*1024 | 396*324*11.2 | 376.32 * 301.06 | LVDS | / | 30 PIN | CTP | |
| 21.5 | RXL215072-A | Ọdun 1920*1080 | 495.6 * 292.2 * 10.6 | 476.64 * 268.11 | LVDS | / | 30 PIN | CTP | |
| RXL215090-A | Ọdun 1920*1080 | 489.3 * 287 * 12.8 | 476.06 * 267.8 | LVDS | / | 30 PIN | IPS |
